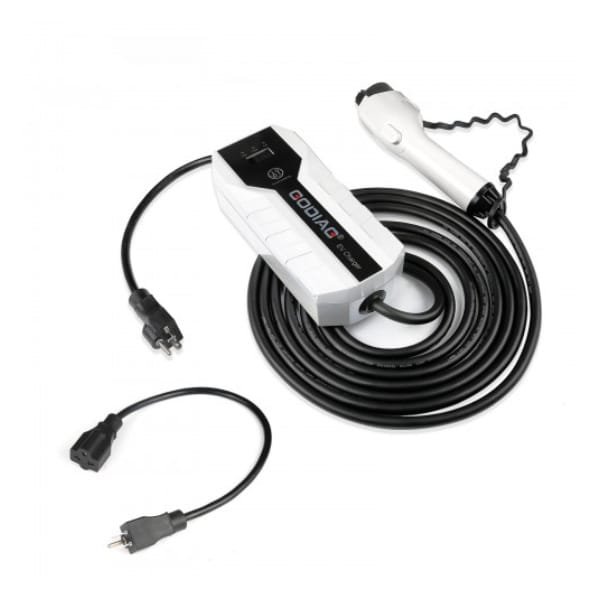

Godiag EV-B04 Level 1+2 Portable EV Charger

(1 customer review)

$159.99

Key Features:

Portable & Lightweight – Dual Level 1 + Level 2 Plug-in EVSE – 2 Years Warranty – Nema 6-20 with Nema 5-15 power adapter cable

  • Max charging power: 3.8kW @16A
  • Adjustable power output: 8A/10A/13A/16A
  • Max Charging speed: 15 MPH
  • Charging connector: J1772
  • LED status lights: Yes
  • IP65 Waterproof
  • Special feature: Automatically solve charging problems during active charging session

*Note: Prices and warranty details may change over time and the same will be updated here at the earliest. Check More info and Latest price.

Specification: Godiag EV-B04 Level 1+2 Portable EV Charger

Basic Info
Charger Level

Level 1, Level 2

EVs compatibility

All EVs

is Smart Charger?

No

Deployment
Convenience

Portable/Fixed solution at location of installation (Home-office etc)

Usage

Indoor, Outdoor

Power
Power supply connection

Plug-in

Power input

110V/240V 15A-20A AC

Power load distribution

Single-phase

Frequency

50/60 Hz

Max power output

3.8kW @16A

Adjustable power output

Yes

Performance
Max charging speed (Range added per hour of charging in miles)

15 MPH

Hardware
No. of charging cables (No. of EVs can charge at a time)

1

Holster/Dock

Simple (Separate from charging unit)

Charging cable management system

Separate from unit

Cable length

16.4-ft (5m)

Charging connector

J1772 Type 1

Power adapters in pack

Nema 6-20 & Nema 5-15

Latch/Lock button on charging handle

Yes

Auto sensor button on handle to open charge port

No

Smart Charging Functions
LED status lights

Yes

App integration

No

Wi-Fi/Internet connectivity

No

Schedule charging

No

Charging Stats reporting

No

Power load sharing (Between multiple chargers on same circuit)

No

Access control

No

RFID feature

No

Voice Assistant

No

Automatically resume charging after power outage

Yes

Auto troubleshooting

Yes

Integrated utility companies plans detail in App

Not Applicable

Auto schedule Off-peak charging hours communication with utility providers

No

Integrated Distributed Energy Resource Management System (DERMS)

No

Software/Firmware updates

No

OCPP compliant software

Not Applicable

Body
Weight

6.4 lbs. (2.9 kg)

Ambient requirements
Storage temperature range

Not specified

Operating temperature range

-22°F to +122°F (-30°C to +50°C)

Ventilation

Not specified

Certifications
Weather protection (Enclosure Rating)

IP65

Energy Star certified

No

Safety Certifications

FCC, UL

Installation
Mounting

Wall, Portable

Installation requirements

Ready to use

Installation cost

No cost

Miscellaneous
Warranty

24 months* (2 year*)

Eligible for Tax Credit/Rebates

Yes

Buying Price (By Variant)
Buying Price (Single Variant)

$159.99*

1 review for Godiag EV-B04 Level 1+2 Portable EV Charger

5.0 out of 5
1
0
0
0
0
Write a review
Show all Most Helpful Highest Rating Lowest Rating
  1. Thomas Taylor

    Was finding a portable charger for me I mostly don’t travel much but I go to camping often. So though Level 1 charger will do the job. But then I found this. Level 1 + 2 charger. I thought this is amazing. There’s a Nema 5-15 adapter for level 1 charging to be tethered upon the fixed cable Nema 6-20 for level 2 charging. That was amazing and I bought this 6 months ago.

    + PROS: IP65 enclosure makes it perfect choice for outdoor charging especially in extreme weather Worked really fine with overnight charging Plus when at remote places it just works with available wall outlet. Lightweight to handle and easy to use. Quality material of body, cable and connector. Quality on cheap price.
